Home / Products / In-Wall Cisterns & Frames / In-Wall Cisterns / Slim Concealed Cistern 6/3L
SKU: T02-0130-0240

Slim Concealed Cistern 6/3L

WC cistern for back to wall WC
This T02-0130-0240 slim concealed cistern is fully insulated with polystyrene for long-lasting performance. Suitable for tight voids.
Badge for WRAS Approval
Main Product Image

Technical Information

Download Data Sheet

Application

This T02-0130-0240 WC cistern for back to wall WCs offers dual flush functionality. Our Fluidmaster 747 airgap valve offers a quiet fill, while polystyrene offers protection against condensation. This cistern is slim in design, suitable for tight voids.

  • Suitable for front mounted flush plates
  • Includes 747 airgap fill valve
  • Fully insulated for long-lasting performance and protection against condensation
  • Slim depth, installs into 100mm void
  • 1/2″ water connection

Features

Material
Plastic
Cistern Model
T02
Minimum flushing water quantity
3
Maximum flushing water quantity
6
Adjustable water volumes
Yes
Mechanical activation plate compatible
Yes
Pneumatic activation plate compatible
No
Touchless/IR activation plate compatible
No
Front activation
Yes
Top activation
No
With shut-off valve
Yes

Dimensions

Height
732 mm
Width
536 mm
Depth
85 mm

Product Number

T02-0130-0240

Warranties and Certification

WRAS, UKCA, EN 14055
Badge for WRAS Approval
Product Thumbnail
Download Data Sheet

Also Available in In-Wall Cisterns & Frames:

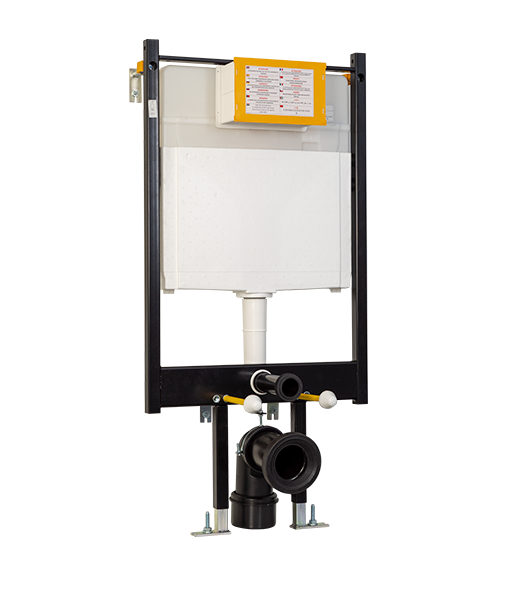

Thumbnail for T-Series T02 Ultra Slim WC Frame
