Home / Products / Fill & Flush / Torbeck Fill Valve 9.5″ Bottom Entry – 1/2″ Plastic Shank
SKU: 721U-074-P25

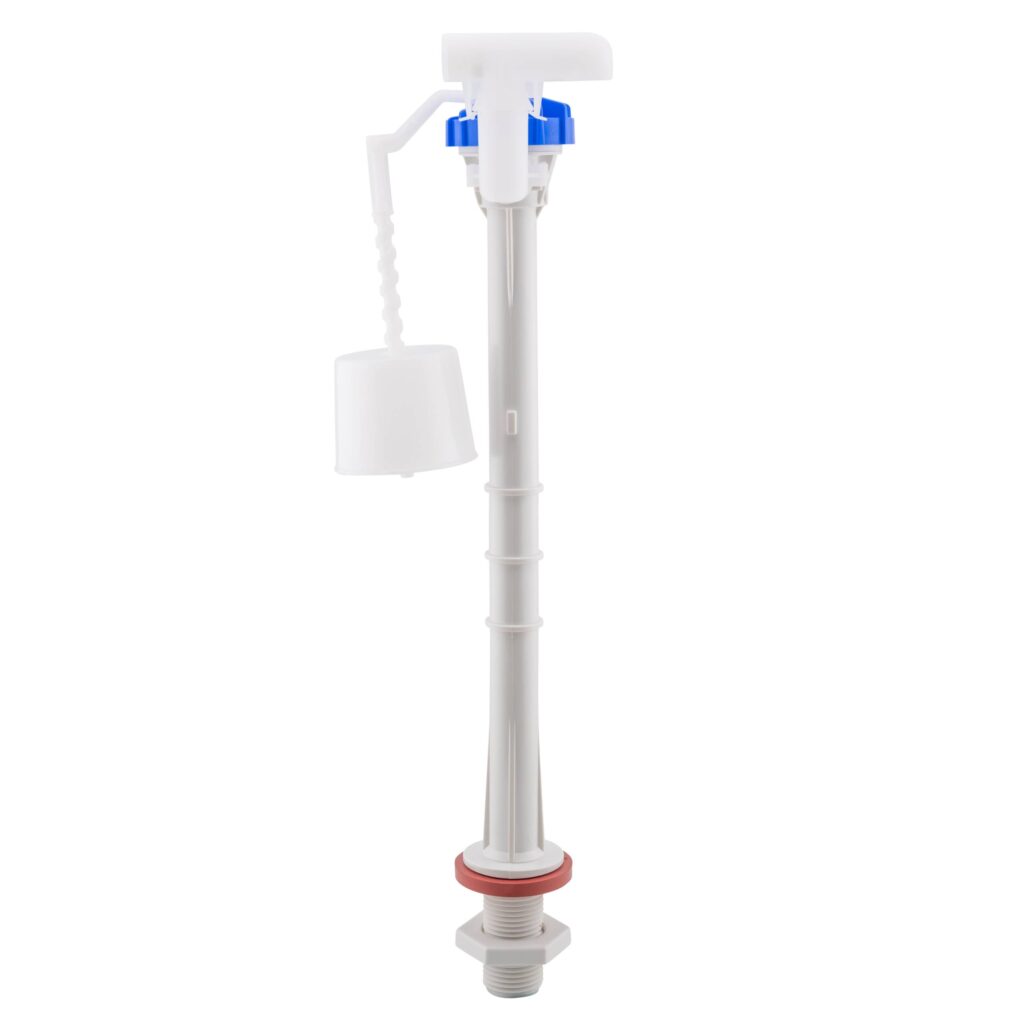

Torbeck Fill Valve 9.5″ Bottom Entry – 1/2″ Plastic Shank

Fixed-height bottom entry fill valve for deeper domestic cisterns
The Torbeck 9.5” bottom entry fill valve with ½” plastic shank offers a fixed-height solution for deeper toilet cistern installations. Designed with AG AirGap backflow protection and Reg4 compliance, it delivers dependable performance in domestic settings.
Badge for Kiwa Certification
Main Product Image

Technical Information

Download Data Sheet

Application

The Torbeck 9.5” bottom entry fill valve with ½” plastic shank is suitable for toilet cisterns requiring a bottom inlet connection and increased fixed valve height. It is ideal for domestic installations and replacement scenarios where a lightweight solution is preferred.

  • AG Airgap technology
  • Meets BS1212-4 and Water Supply Regulations
  • KUKreg4 approved
  • Compact footprint
  • Suitable for low pressure installations
  • Controlled flow throughout pressure range
  • Quiet filling with improved diaphragm
  • Easy twist cap for maintenance
  • 12-month warranty



Dimensions

Height
323.4 mm
Width
109.5 mm
Depth
58 mm

Product Number

721U-074-P25

Warranties and Certification

Badge for Kiwa Certification
Product Thumbnail
Download Data Sheet
