T-Series T02 Slim WC Frame

Comfortably fits in tight voids, while the 6/3l dual flush saves water.
The T02 boasts a slim design, allowing it to comfortably fit in tight voids. With adjustable height and depth, this frame is a versatile option for projects with minimal depth space.
Badge for 10 year warranty

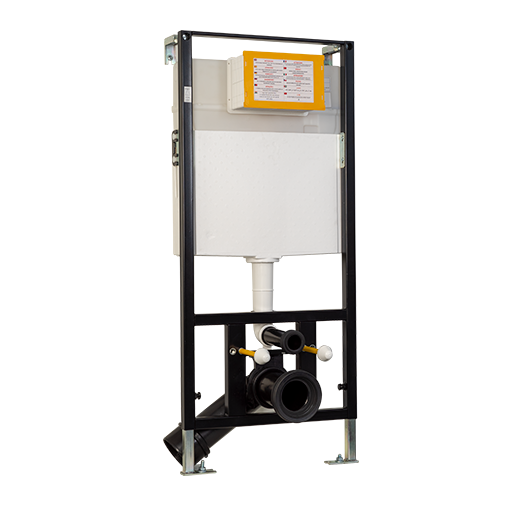

Product Image
Dimensions of the Product

T-Series T02 Slim WC Frame

Looking for spares? Our team can help, Get In Touch



Technical Information

Application

Perfect for modern designs, this extremely thin concealed cistern is suitable for areas where a shallow installation depth is required. Fluidmaster frame sets support your chosen sanitaryware with technology you can trust. Complete with fixings and tested to hold a 400kg static load. Pre-assembled wall brackets and adjustable feet make for easier installation and height adjustment. Suitable for universal installation into solid walls, pre-wall installation in dry walls, and installation in prefabricated walls.

  • Suitable for front mounted flush plates
  • Adjustable volumes for both full (4 -7 L) and partial (2-3 L) flushing
  • Includes quiet fill 747 airgap valve
  • Fully insulated for long-lasting performance and protection against condensation
  • Height adjustments (0-200 mm)
  • Max load 400KG
  • Adjustable feet
  • Compatible with installation of wall hung WC pans with dimension of 180 mm or 230 mm
  • Pre-installed stop valve
  • Cistern insulated to protect against condensation
  • Water connection – top centre
  • Tool free maintenance

Includes

  • Frame and cistern
  • WC connection kit
  • Fixation materials
  • Masonry aid
  • Discharge elbow 90mm with reducer to 110mm
  • Mounting instructions

Fluidmaster frames and cisterns are designed with ease of installation in mind. All frames include a 10 year warranty and offer easy service and maintenance. For further information or help, please don’t hesitate to contact our team.

Additional Material

Features

Material
Steel
Cistern Model
T02
Main Water Connection
External Thread, 1/2"
Minimum flushing water quantity
3
Maximum flushing water quantity
6
Adjustable water volumes
Yes
Mechanical activation plate compatible
Yes
Pneumatic activation plate compatible
No
Touchless/IR activation plate compatible
No
Front activation
Yes
Top activation
No
With shut-off valve
Yes

Dimensions

Height
1025 mm
Width
500 mm
Depth
125 mm

Product Number

T02-2113-0240

Warranties and Certification

UKCA, EN14055
