T-Series T06 0.78m WC Frame

Designed to fit in low height installations, including mordern 800mm furniture.
The T06 WC frame with concealed cistern is perfectly designed for low height installations and fitment into modern 800mm furniture. It is an excellent choice for universal installation and can accommodate top or front flush activation.
Badge for 10 year warranty Badge for WRAS Approval

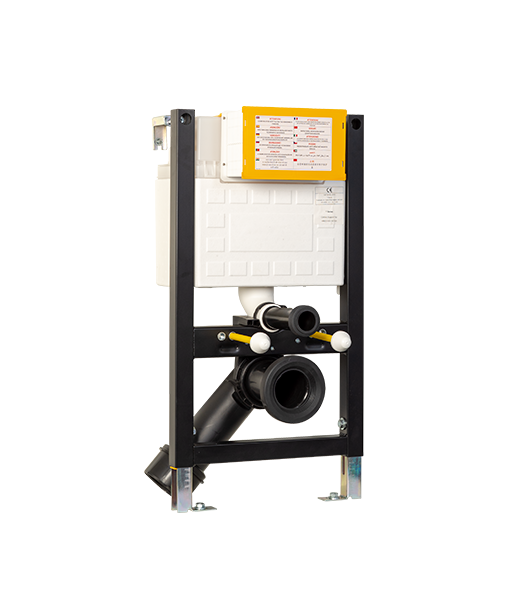

Main Product Image

Technical Information

Application

This T06 frame and concealed cistern is designed to fit in low installations, including modern 800 mm bathroom furniture. The water saving 6/3l flush can reduce water usage by up to 50%.  With a ride range of activation plate options, this frame brings versatility to any project. The powder coated steel support frame features adjustable feet for quick and easy precision installation.

  • Low height frame
  • Dual flush 6/3l
  • Fits into 800mm high furniture
  • Front or top activation
  • 200mm adjustable height
  • Fully insulated for protection against condensation
  • Compatible with Mechanical activation plates

Features

Material
Steel
Cistern Model
T06
Main Water Connection
1/2"
Minimum flushing water quantity
3
Maximum flushing water quantity
6
Adjustable water volumes
Yes
Mechanical activation plate compatible
Yes
Pneumatic activation plate compatible
No
Touchless/IR activation plate compatible
No
Front activation
Yes
Top activation
Yes
With shut-off valve
Yes

Dimensions

Height
780 mm
Width
430 mm
Depth
165 mm

Product Number

T06-5113-0240

Warranties and Certification

WRAS, UKCA, EN14055
Badge for 10 year warranty Badge for WRAS Approval
